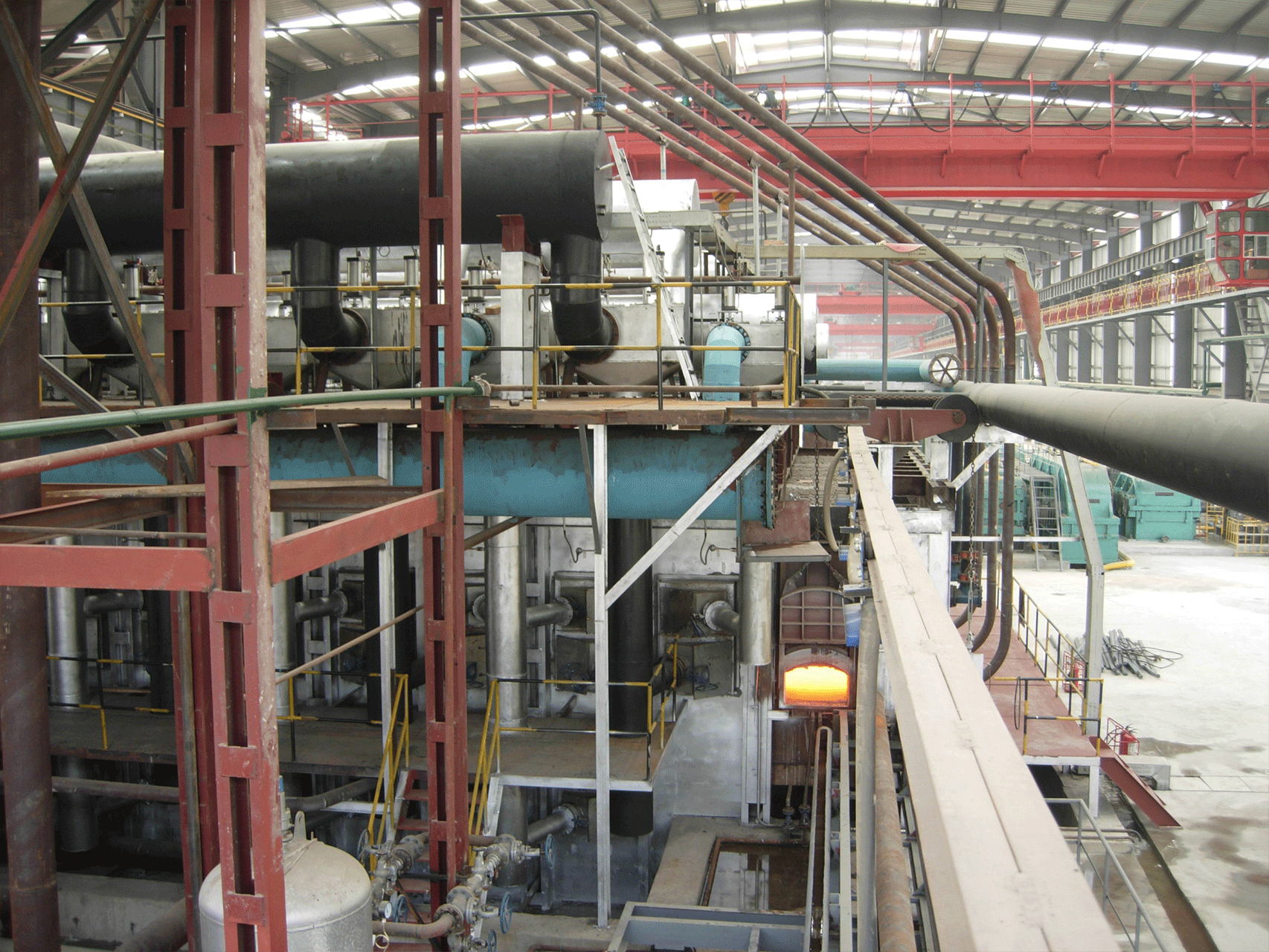

A Double Regenerative Heating Furnace is an industrial furnace that is used for high-temperature heating in industries such as steel and glass manufacturing. It uses a regenerative heating system to improve energy efficiency and reduce fuel consumption.
The furnace has two regenerators, which are used to preheat the combustion air that is used in the next cycle. The hot exhaust gases from the furnace are passed through one regenerator, which heats up the ceramic bricks inside. The combustion air is then passed through the other regenerator, where it is preheated by the hot bricks before entering the furnace for combustion.
The furnace is designed to operate at very high temperatures, typically between 1400°C and 1700°C. It is equipped with an automatic control system that allows for precise control of the heating process. This helps to ensure consistent quality and minimize the risk of overheating or underheating.
The Double Regenerative Heating Furnace is a highly efficient and effective heating solution that is widely used in industrial applications where high-temperature heating is required. Its advanced features and capabilities make it a valuable asset for industries that require reliable and efficient heating systems.
Double Regenerative Heating Furnace: Working Principle
The Double Regenerative Heating Furnace uses a regenerative heating system to improve energy efficiency and reduce fuel consumption. The working principle of this furnace can be described in the following steps:
- Preheating: The hot exhaust gases from the furnace are passed through one regenerator, which heats up the ceramic bricks inside. The combustion air is then passed through the other regenerator, where it is preheated by the hot bricks before entering the furnace for combustion.
- Combustion: The preheated combustion air enters the furnace and combines with the fuel (usually natural gas or oil) to create a flame. This flame heats up the material being processed in the furnace.
- Regeneration: As the exhaust gases are expelled from the furnace, they pass through the other regenerator, which absorbs heat from the gases and transfers it to the bricks. This process regenerates the heat-absorbing capacity of the bricks.
- Repeat: The regenerators alternate their roles between heating and preheating the combustion air in a continuous cycle, ensuring a steady supply of hot air into the furnace.
The Double Regenerative Heating Furnace is designed to operate at very high temperatures, typically between 1400°C and 1700°C. The automatic control system allows for precise control of the heating process, ensuring consistent quality and minimizing the risk of overheating or underheating. Overall, the regenerative heating system of the Double Regenerative Heating Furnace is highly efficient, helping to reduce fuel consumption and lower operating costs.
The characteristics
Here are some of the key characteristics of a Double Regenerative Heating Furnace:
- Energy efficiency: The regenerative heating system of the furnace improves energy efficiency by using the hot exhaust gases to preheat the combustion air. This reduces fuel consumption and operating costs, resulting in significant energy savings.
- Environmental friendliness: The regenerative heating system also helps to reduce NOx emissions, which are a major contributor to air pollution. This makes it an environmentally friendly option for industrial heating applications.
- Precise control: The automatic control system of the furnace allows for precise control of the heating process, ensuring consistent quality and minimizing the risk of overheating or underheating. This helps to ensure product quality and reduce waste.
- High temperature capability: A Double Regenerative Heating Furnace is capable of operating at very high temperatures, making it ideal for melting and heating materials such as steel and glass.
- Continuous operation: The furnace has two regenerators that alternate between heating and preheating the combustion air, ensuring a continuous flow of hot air into the furnace. This is essential for efficient and effective heating.
Overall, the Double Regenerative Heating Furnace is a highly efficient and effective heating solution that offers significant benefits for industrial applications. Its advanced features and capabilities make it a valuable asset for industries that require reliable and efficient heating systems.
